WPWA40、WPWA50、WPWA60、WPWA70、WPWA80、WPWA100、WPWA120、WPWA135、WPWA155、WPWA175、WPWA200、WPWA250、型蜗轮蜗杆减速器主要尺寸

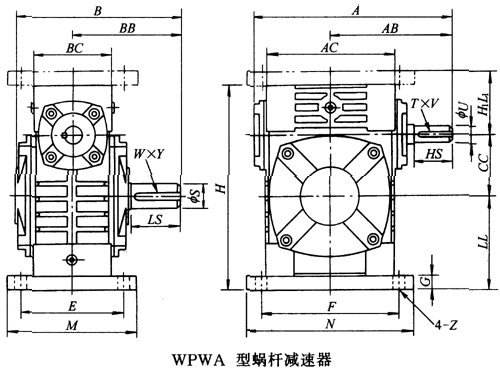

WPWA型蜗杆减速器主要尺寸/mm
规格 |
减速比 |
A |
AB |
B |
BB |
AD |
BD |
AC |
BC |
CC |
HL |
H1L1 |
LL |
M |
N |
E |
40 |
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60 |
149 |
89 |
124 |
79 |
78 |
42 |
95 |
61 |
40 |
35 |
45 |
60 |
100 |
130 |
80 |
50 |
175 |
107 |
150 |
97 |
85 |
50 |
111 |
68 |
50 |
35 |
50 |
80 |
120 |
140 |
95 |
60 |
198 |
122 |
168 |
112 |
105 |
55 |
127 |
76 |
60 |
42 |
60 |
93 |
130 |
150 |
105 |
70 |
231 |
140 |
194 |
131 |
125 |
65 |
152 |
86 |
70 |
55 |
73 |
108 |
150 |
190 |
115 |
80 |
261 |
160 |
214 |
142 |
140 |
70 |
169 |
102 |
80 |
65 |
83 |
123 |
170 |
220 |
135 |
100 |
322 |
190 |
254 |
169 |
180 |
90 |
216 |
117 |
100 |
80 |
100 |
150 |
190 |
270 |
155 |
120 |
381 |
229 |
282 |
190 |
220 |
100 |
256 |
124 |
120 |
95 |
120 |
180 |
230 |
320 |
180 |
135 |
433 |
260 |
317 |
210 |
260 |
110 |
296 |
147 |
135 |
105 |
135 |
215 |
250 |
350 |
200 |
155 |
504 |
302 |
382 |
252 |
280 |
120 |
345 |
185 |
155 |
103 |
135 |
235 |
280 |
380 |
220 |
175 |
545 |
325 |
402 |
262 |
320 |
140 |
374 |
192 |
175 |
123 |
160 |
260 |
310 |
410 |
250 |
200 |
587 |
350 |
467 |
305 |
360 |
150 |
412 |
230 |
200 |
130 |
175 |
290 |
355 |
445 |
290 |
250 |
705 |
420 |
552 |
360 |
420 |
190 |
500 |
285 |
250 |
150 |
200 |
350 |
460 |
560 |
380 |
规格 |
减速比 |
F |
G |
Z |
M1 |
N1 |
E1 |
E2 |
E3 |
G1 |
输入轴 |
输出轴 |
HS |
U |
T×V |
LS |
S |
W×Y |
40 |
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60 |
110 |
10 |
10 |
95 |
187 |
72 |
97 |
70 |
12 |
25 |
12 |
4×2.5 |
28 |
14 |
5×3 |
50 |
110 |
15 |
12 |
111 |
226 |
90 |
110 |
90 |
14 |
30 |
12 |
4×2.5 |
40 |
17 |
5×3 |
60 |
120 |
18 |
12 |
127 |
257 |
102 |
129 |
100 |
15 |
40 |
15 |
5×3 |
50 |
22 |
6×3.5 |
70 |
150 |
18 |
15 |
152 |
305 |
120 |
155 |
120 |
20 |
40 |
18 |
6×3.5 |
60 |
28 |
8×4 |
80 |
180 |
18 |
15 |
174 |
350 |
140 |
180 |
140 |
20 |
50 |
22 |
6×3.5 |
65 |
32 |
10×5 |
100 |
220 |
20 |
15 |
224 |
410 |
165 |
215 |
190 |
22 |
50 |
25 |
8×4 |
75 |
38 |
10×5 |
120 |
260 |
25 |
18 |
264 |
494 |
195 |
255 |
220 |
25 |
65 |
30 |
8×4 |
85 |
45 |
14×5.5 |
135 |
290 |
30 |
18 |
304 |
559 |
230 |
285 |
260 |
30 |
75 |
35 |
10×5 |
95 |
55 |
16×6 |
155 |
320 |
32 |
21 |
345 |
605 |
250 |
305 |
290 |
35 |
85 |
40 |
12×5 |
110 |
60 |
18×7 |
175 |
350 |
37 |
21 |
374 |
675 |
273 |
348 |
320 |
40 |
85 |
45 |
14×5.5 |
110 |
65 |
18×7 |
200 |
390 |
45 |
24 |
424 |
749 |
305 |
390 |
370 |
40 |
95 |
50 |
14×5.5 |
125 |
70 |
20×7.5 |
250 |
480 |
50 |
28 |
510 |
920 |
375 |
475 |
440 |
45 |
110 |
60 |
18×7 |
155 |
90 |
25×9 |
|
