WPDX50、WPDX60、WPDX70、WPDX80、WPDX100、WPDX120、WPDX135、WPDX155、WPDX175、WPDX200、WPDX250型蜗轮蜗杆减速器主要尺寸

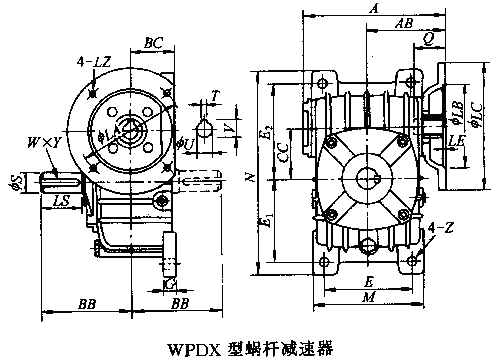

WPDX型蜗杆减速器主要尺寸 /mm
|
规格 |
输入功率/kW |
减速比 |
A |
AB |
BB |
BC |
CC |
M |
N |
E |
E1 |
E2 |
G |
Z |
|
50 |
0.18 |
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60 |
151 |
83 |
97 |
50 |
50 |
116 |
220 |
90 |
93 |
102 |
15 |
12 |
|
60 |
0.37 |
167 |
91 |
112 |
55 |
60 |
126 |
260 |
100 |
105 |
120 |
20 |
12 |
|
70 |
0.37 |
200 |
109 |
131 |
65 |
70 |
156 |
295 |
120 |
120 |
135 |
20 |
15 |
|
0.75 |
202 |
111 |
|
80 |
0.75 |
225 |
125 |
142 |
70 |
80 |
175 |
320 |
140 |
130 |
150 |
20 |
15 |
|
1.5 |
|
100 |
1.5 |
280 |
148 |
169 |
90 |
100 |
224 |
375 |
190 |
155 |
180 |
26 |
15 |
|
120 |
2.2 |
333 |
181 |
190 |
100 |
120 |
266 |
450 |
220 |
185 |
215 |
30 |
18 |
|
3.0 |
|
135 |
3.0 |
375 |
202 |
210 |
110 |
135 |
306 |
495 |
260 |
210 |
235 |
30 |
18 |
|
4.0 |
|
155 |
5.5 |
448 |
247 |
252 |
140 |
155 |
350 |
590 |
290 |
245 |
295 |
35 |
21 |
|
175 |
5.5 |
481 |
262 |
262 |
150 |
175 |
394 |
640 |
320 |
267 |
323 |
40 |
21 |
|
7.5 |
|
200 |
11.0 |
543 |
285 |
305 |
175 |
200 |
440 |
710 |
370 |
290 |
360 |
40 |
24 |
|
250 |
11.0 |
615 |
330 |
360 |
200 |
250 |
510 |
860 |
440 |
350 |
440 |
45 |
28 |
|
15.0 |
|
规格 |
输入功率/kW |
减速比 |
电机法兰 |
输入孔 |
输出轴 |
质量m/kg |
|
LA |
LB |
LC |
LE |
LZ |
Q |
U |
T×V |
LS |
S |
W×Y |
|
50 |
0.18 |
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60 |
115 |
95 |
140 |
4 |
M8 |
31 |
11 |
4×12.8 |
40 |
17 |
5×3 |
8 |
|
